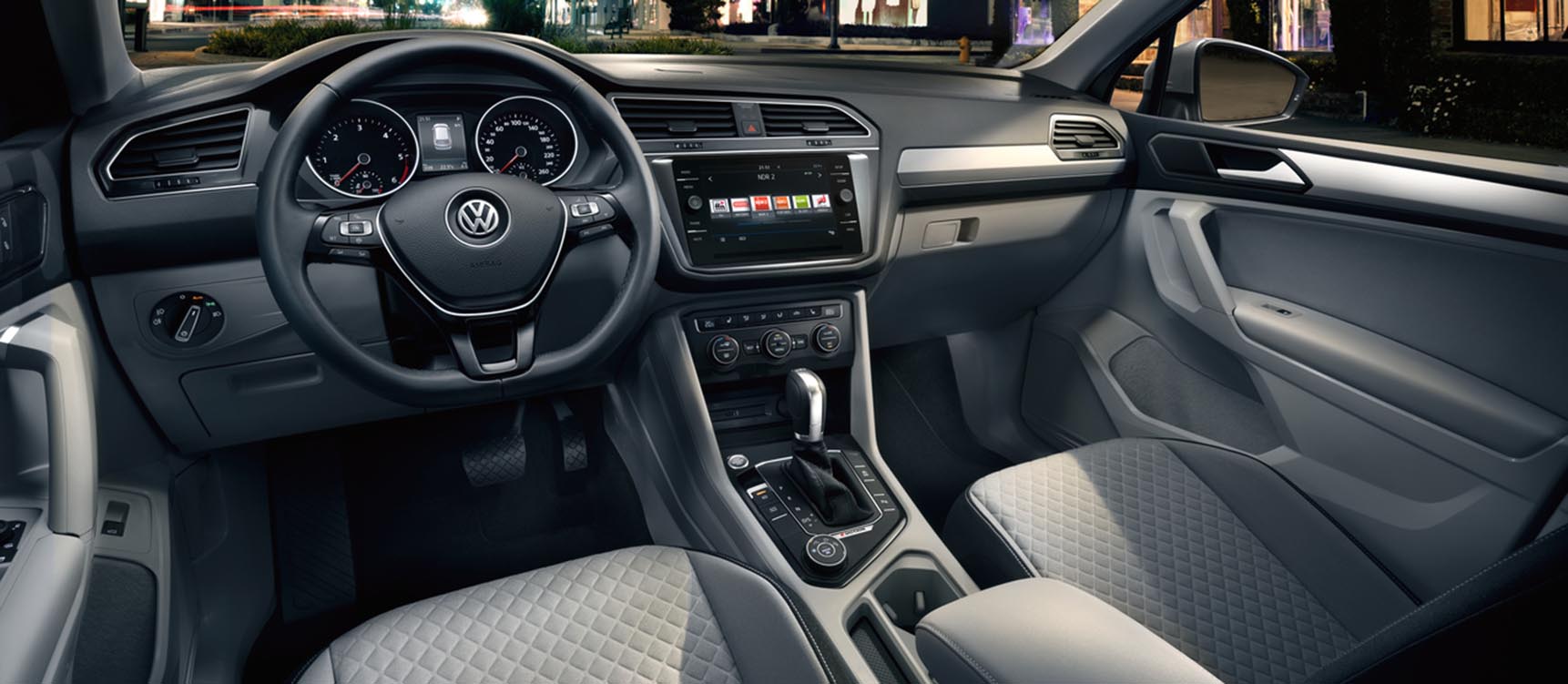

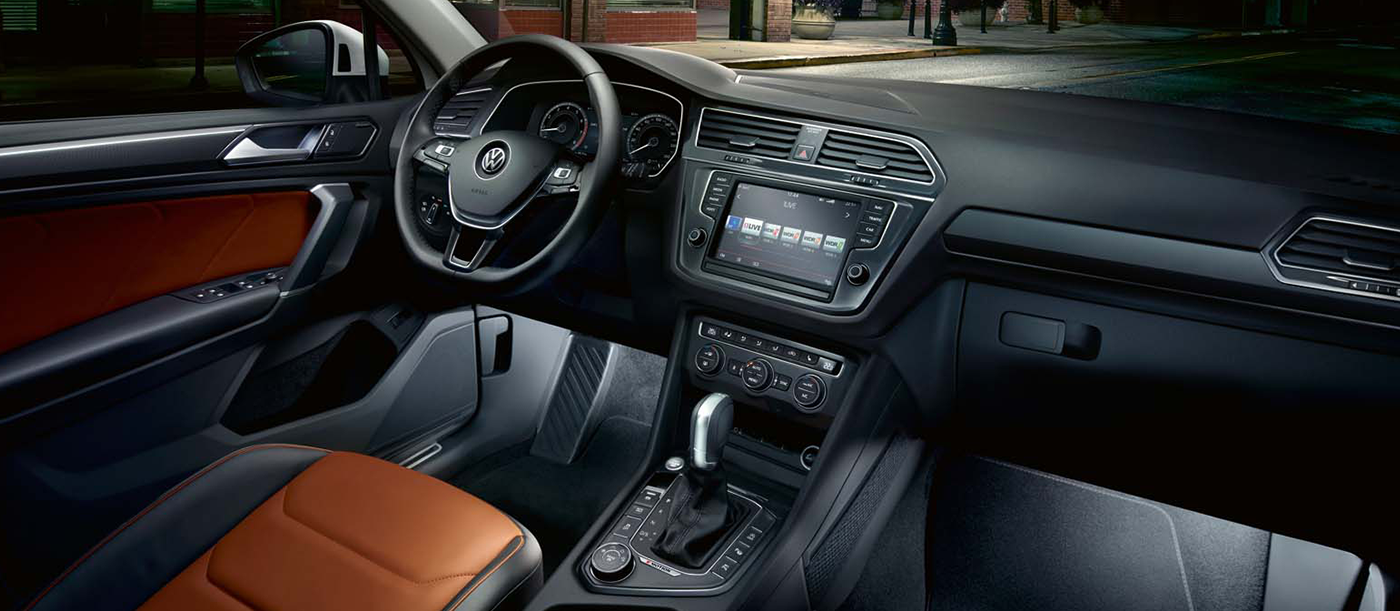

1-Tweeters create an elegant unit with the door handles

2-Triangular window instead of the mirror triangle

3- New multi-function steering wheels (optional heating)

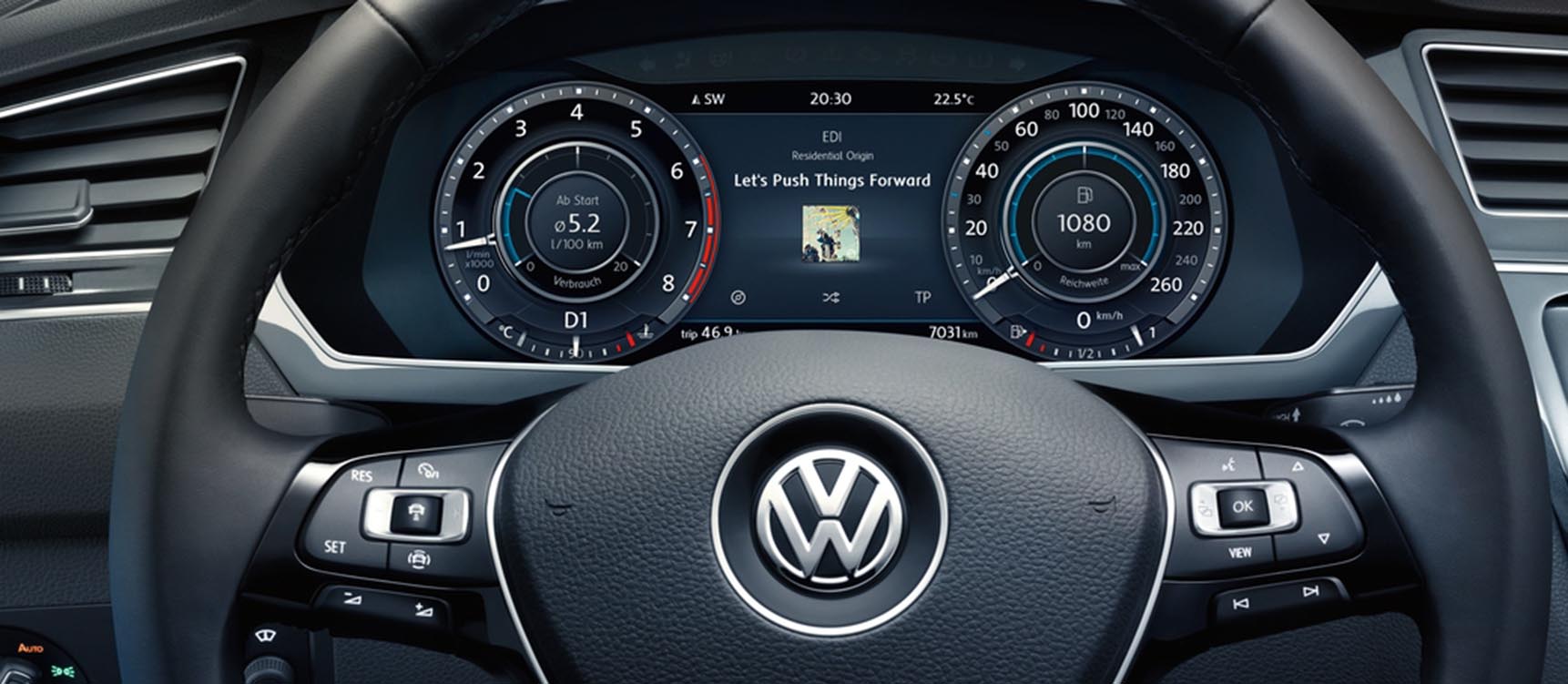

4-Configurable Active Info Display (option)

5-Latest generation infotainment systems (MIB II)

6- Large air vent for the draught-free 3-zone Climatronic (option)

7-Central analogue clock

8-Broad air vents with three vanes create less noise when blowing air

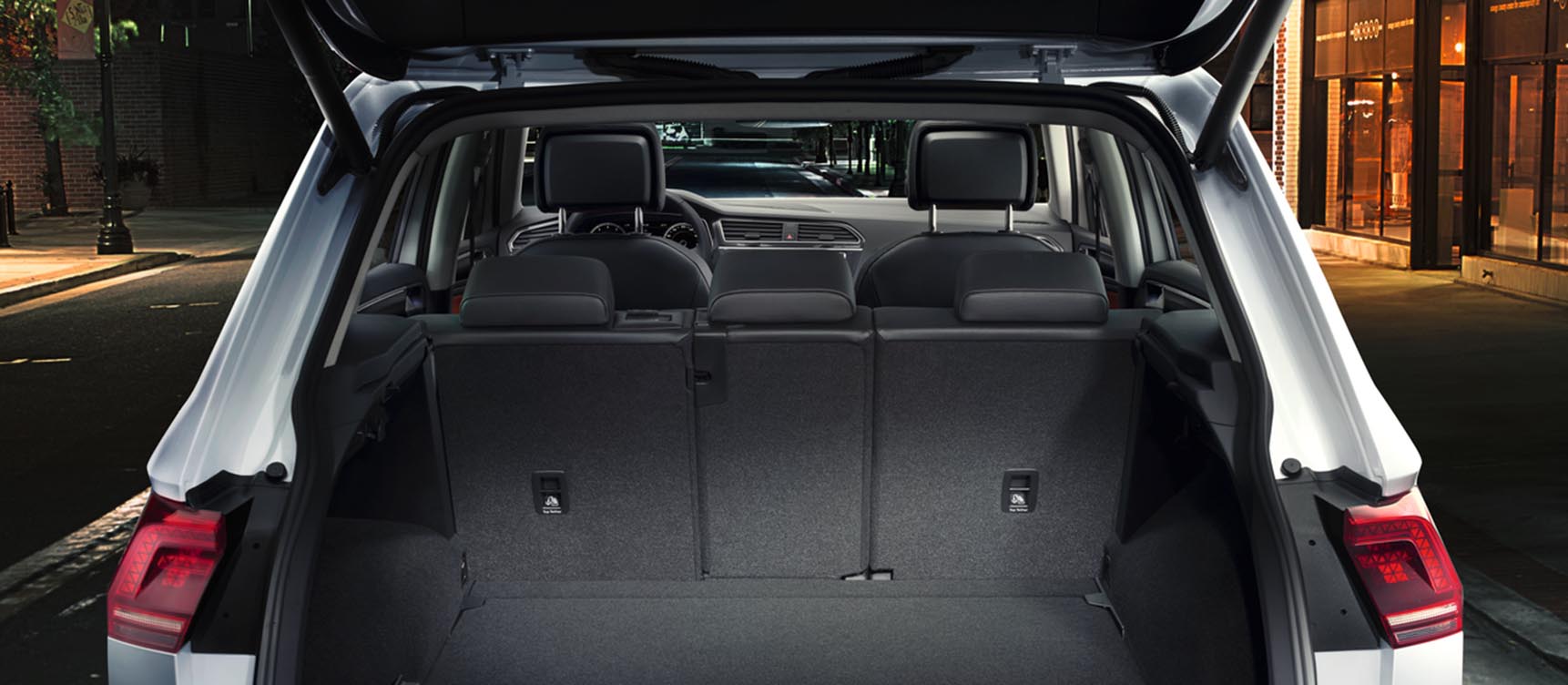

1-Larger through-loading opening when the middle section is folded down (saloon)

2-With the 3-zone Climatronic Central console with climate controls

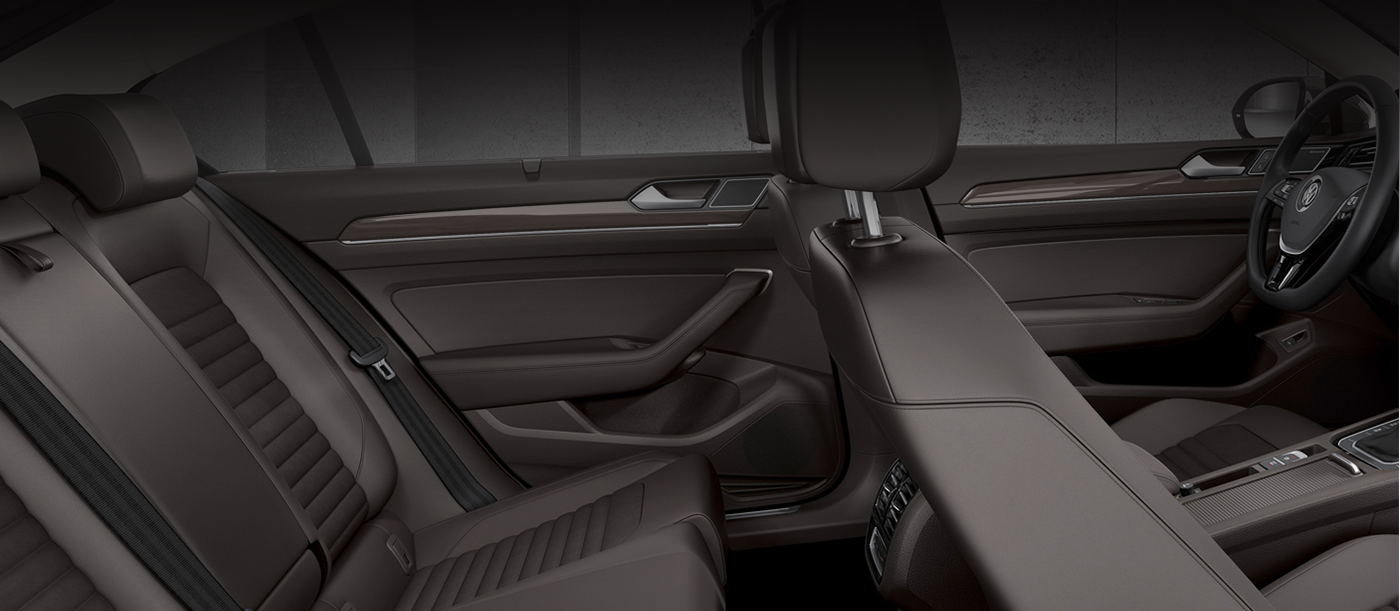

3-Spacious legroom through extended wheelbase

the all new passat

sporty elegance and dynamics

1 2 3 4 5 6 +

1 2 3 4 5 6 7 8

1-Daytime driving lights integrated into the housing with LED headlights, integrated into the lower lighting module on halogen headlights

2-The bonnet with the striking, U-shaped impression emphasises the Passat's powerful elegance

3-The prominent grille in the three-dimensionally designed front section is skilfully linked with the headlights

4-The high-quality side mirrors are mounted on the very striking shoulder which flares toward the rear

5-Chromed trim strips provide additional, exclusive design highlights depending on the equipment

6- The air inlet openings with integrated fog lights in the lower part of the bumper have been moved toward the outside and give the vehicle a broader look

+ LED headlights

- 640 Lumen*
- Low beam/high beam reflector
- Daytime driving light via high beam reflectors and indicator LEDs

1- Logical lines emphasis the quality of the design: all of the design lines are continued.

2-Chromed window frames (depending on the equipment).

3-The door handles are recessed into the shoulder line and give the new Passat a modern and unique look

4-The high-quality side mirrors are mounted on the very striking shoulder which flares toward the rear

5-The sharp edge of the mudguard flows into the vehicle's typical window appearance and visually extends the front section of the vehicle

6-Chromed trim strips (depending on the equipment)

7- The longer wheelbase creates a flatter and elongated overall appearance

8-Short overhangs give the Passat sporty proportions

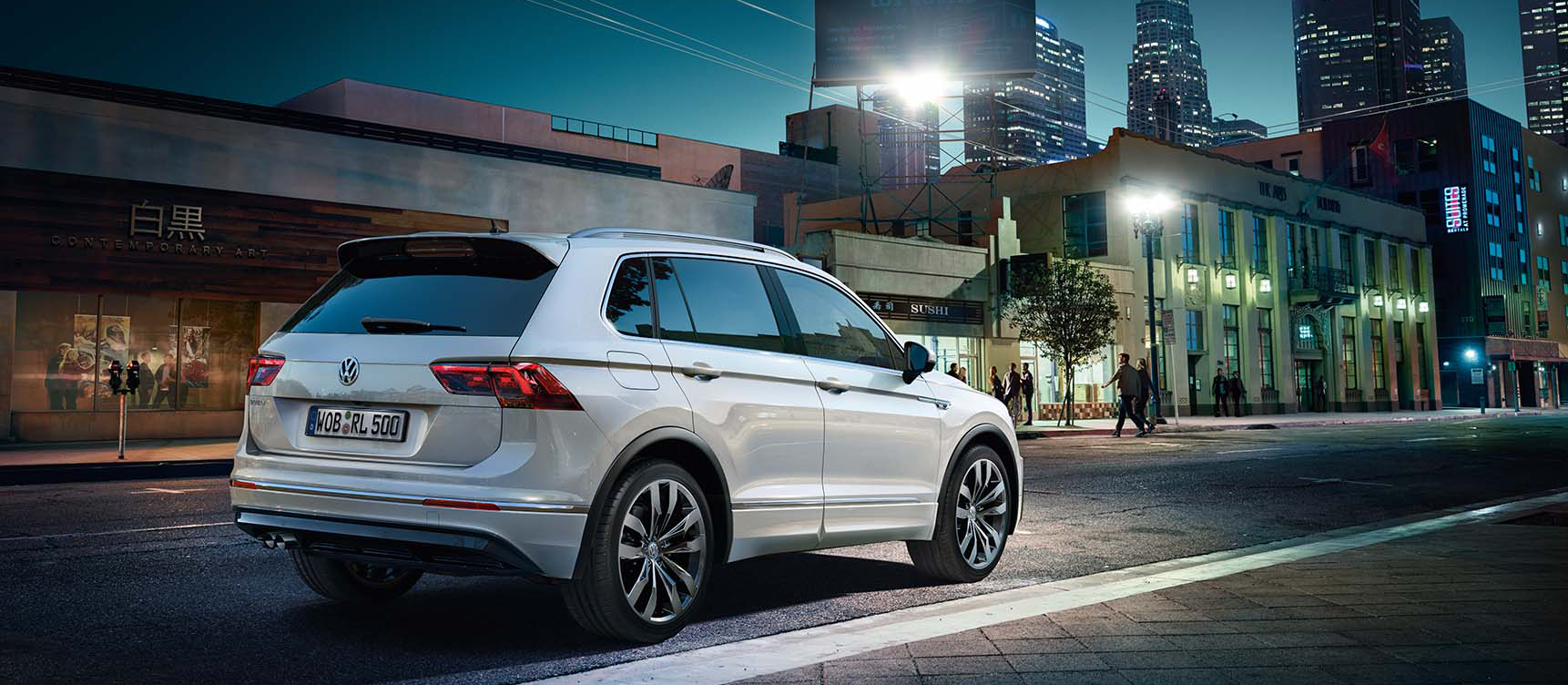

1-Rear lid with a striking edge creates a dynamic tail end on the saloon.

2- Large number plate well

3-Trapezoidal, chromed tailpipe trims emphasis the width of the tail end (Standard feature for top-end engines; later for the R-Line exterior and combination packet for lower-end engines)

4-Chromed trim strips (depending on the equipment)

+

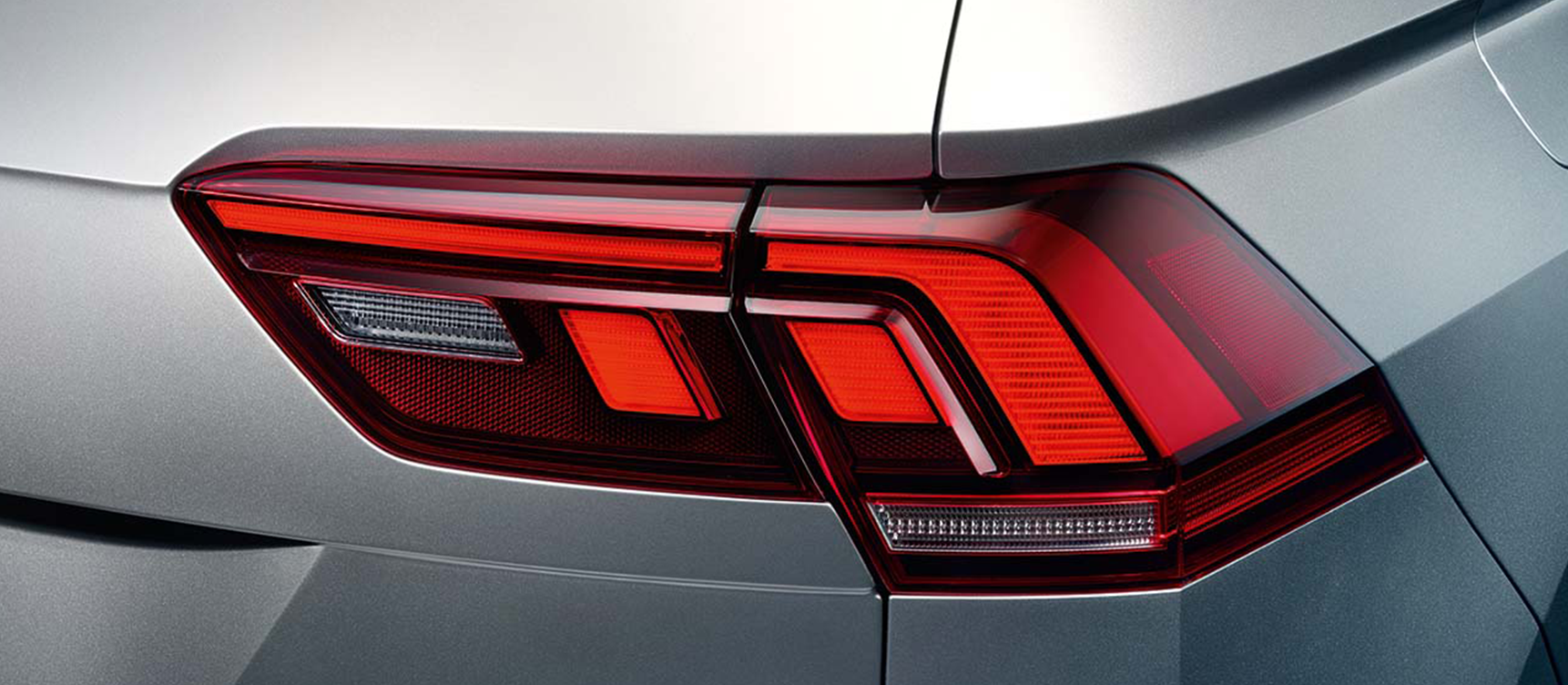

The broad, angular LED tail lights
with a clear glass line give the rear section
a powerful and confident look

LED-headlights

- 640 Lumen*
- Low beam/high beam reflector
- Daytime driving light via high beam reflectors and indicator LEDs

LED-headlights

The broad, angular LED tail lights
with a clear glass line give the rear section
a powerful and confident look

Engine, Gearbox

Engine	4-cylinder SI engine 1.4 l TSI, 110 kW
Max output KW (Bhp)at RPM	110 KW (150) / 5000-6000 rpm
Max torque, Nm at RPM	250 / (1500 - 3500) rpm
Gearbox variants	6- speed automatic dual clutch gearbos (DSG DQ250) -Front wheel drive

Performance

Top Speed	215 Km/h
Acceleration from 0-100 Kmph	9.2 sec
Fuel Consumption, liters/100 Kmph	6.71combined

Safety

Driver and front passenger airbag with front passenger airbag deactivation

Side airbags for outer rear seats, incl. side airbags in front and curtain airbag system

Underbody stone guard

Electronic Stability Control with driver steering recommendation, ABS, ASR, EDL, EDTC and trailer stabilization

ISOFIX anchorage points (mounting fixture for 2 child seats on rear bench seat)

Wheel locks with extended theft protection Plus Anti theft alarm system

Tire pressure monitoring system

Laminated safety glass windshield, heat- and sound-insulating plus rain sensor

3-point seat belt for center rear seat

Poor weather light and cornering light Plus rear fog lights

Electromechanical parking brake with Auto Hold function

Driver Alert System

First aid kit and warning triangle

Tool kit and jack

Warning light for washer fluid level

Operating & Interior Equipment

Leather-wrapped multi-function steering wheel with shifting paddles

Electromechanical speed-sensitive power steering

Cruise control system including speed limiter

Park Assist with park distance control plus rear view camera

Multifunction camera

Keyless locking and starting system Keyless Access with SAFELOCK

Keyless Go (start/stop engine)

Multi-color display 8 inch

Multi-color Digital Cockpit "Pro" , selection of different info profiles

Head-up Display

App-Connect plus mobile phone interface

8 Speakers

2 USB-C ports in the front, Additional 1 USB-C charging socket on the center console in the rear

12-V outlet in center console rear & in luggage compartment

Auto-dimming interior rearview mirror

Drive Mode selection

ECO function

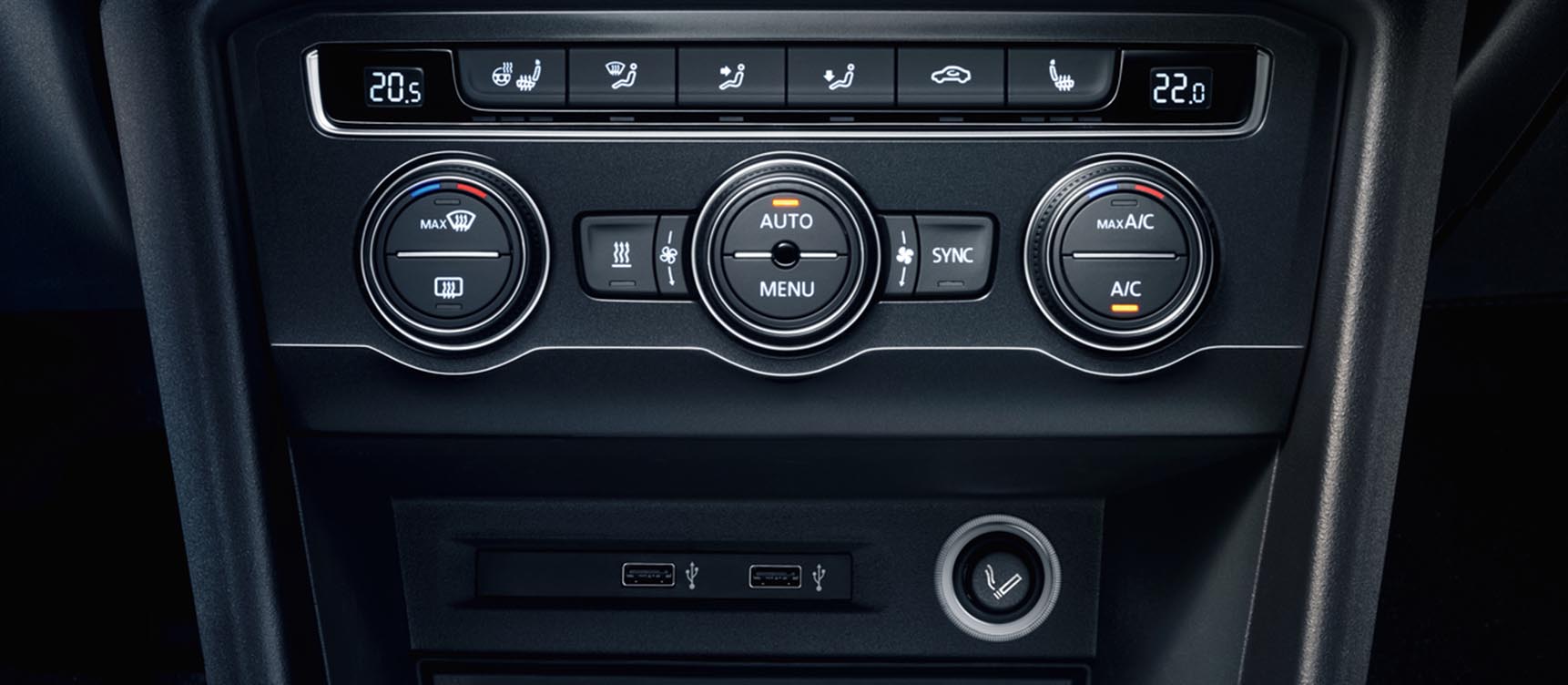

Air Care Climatronic 3 zone automatic climate control with enhanced air filter and controls in the rear

Top comfort front seats with height adjustment & lumbar support

Power-adjustable heated front seats + memory feature

Drawers under front seats

Inserts of front seats and outer rear seats in "ArtVelours" microfiber

Leather package "Vienna", Volkswagen R

Decorative inserts "Cross" for dashboard and front door trim panels

Decorative inserts "Carbon Gray" for dashboard and front door trim panels

30-color ambient lighting

Light unit in front footwell

2 LED reading lights in front and 2 in rear

Overhead storage compartment

Front center armrest height- and longitudinally adjustable, with storage compartment and vents in rear

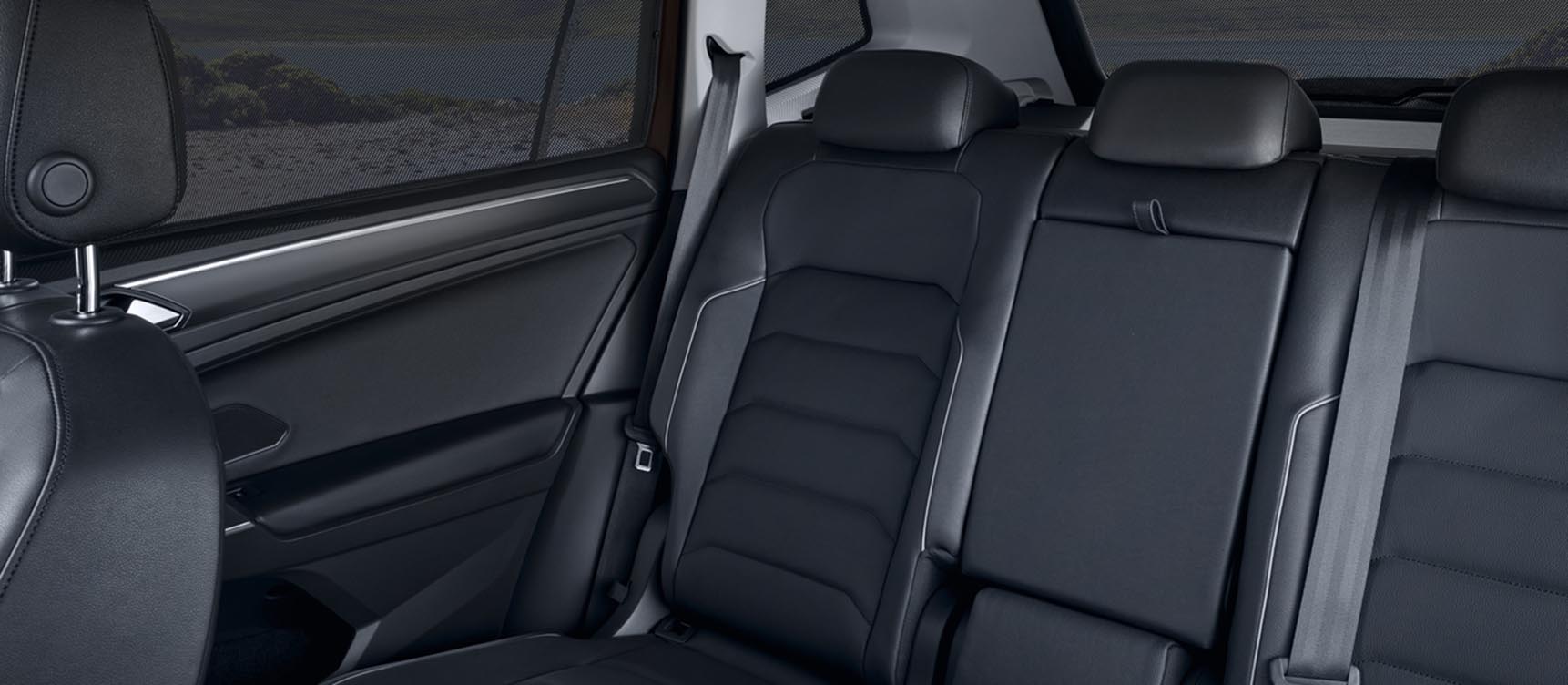

Rear bench seat asymmetric split folding, longitudinally movable and folding plus center armrest

Pedals and foot rest in brushed stainless steel

Power luggage compartment opening and closing, adjustable opening angle "virtual paddle"

Luggage compartment floor adjustable in 2 heights plus Lamp

Space and weight-saving spare wheel

Smoker's package

Chrome elements on the mirror switch and power window switches, door pulls; interior door handle in matte chrome

Exterior Equipment

R-Line Package: Rear spoiler in "R" style- Front scuff plates in aluminum with "R-Line" logo- alloy wheels “R” - Body-colored bumpers in R-Line style

IQ.LIGHT - Matrix LED headlamps with dynamic headlight range & cornering lights

LED headlamps with dynamic headlight range & dynamic cornering light

Automatic headlight control with LED separate daytime running light and Coming Home and Leaving Home feature

Dark red rear combination lamps in LED technology

Tilting and sliding panoramic sunroof

Ext. mirrors, power-adjusted, folding and heated, with surround lighting, front pass. exterior mirror lowering function

Ext. mirror with memory feature

Automatically-heated washer nozzles in front

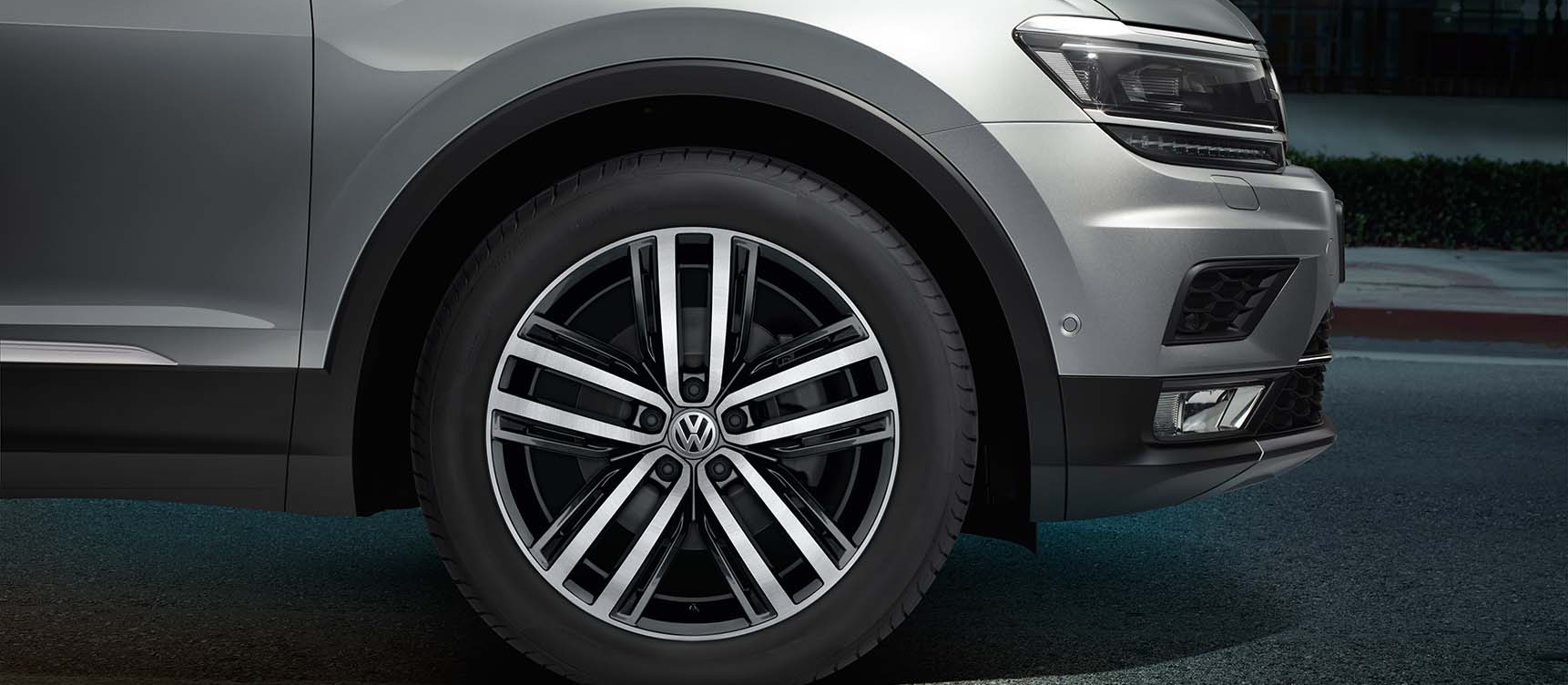

4 alloy wheels "Frankfurt" 7J x 18

4 alloy wheels "Valencia" 8.5J x 19, Volkswagen R

Privacy glass for rear side windows and rear window

Chrome moldings on the side windows

Roof rails, silver-anodized

Weights

Unladen weight	1,803 kg
Gross Vehicle weight	2,120 kg
Payload	681 kg
Fuel tank capacity	58 litres
Boot capacity	615/ 1,655L with folded rear seats

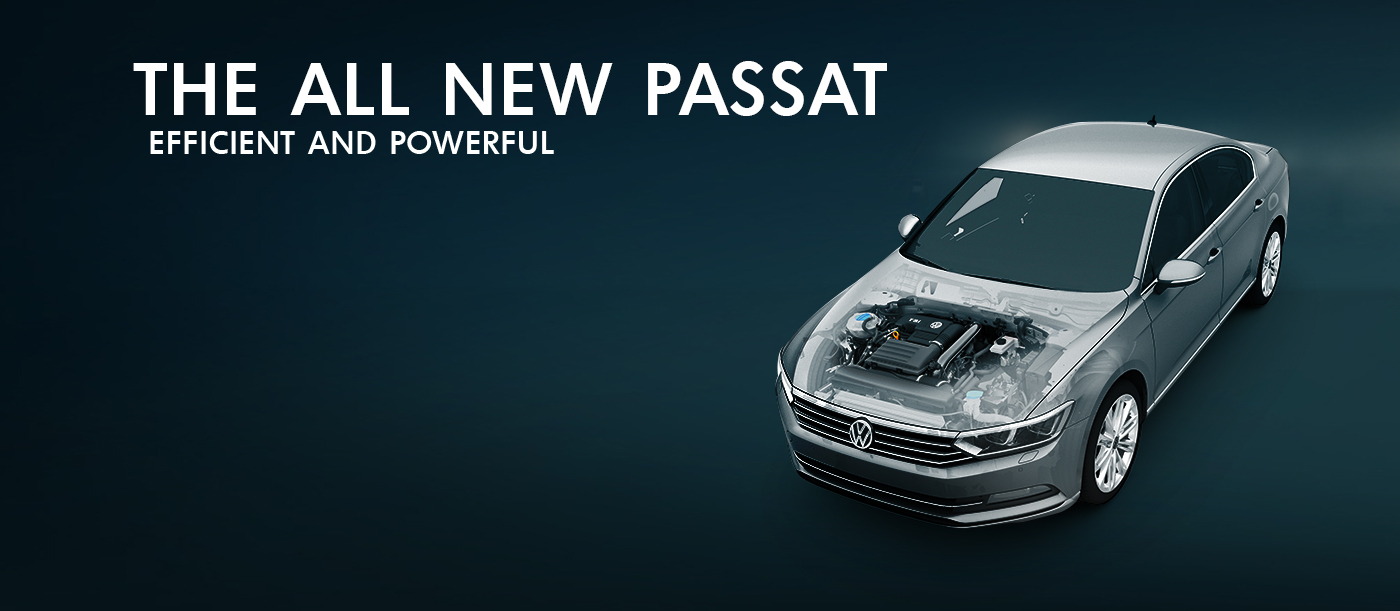

-Engine

The highlight consists of a turbo petrol engine with up to 92 kW (125 hp) and a maximum torque of 200 Nm. This engine is the most powerful four cylinder petrol engine ever offered by Volkswagen – and also represents an absolute USP in this vehicle class. This makes the Passat a highly attractive alternative for premium customers.

The newly designed engines have been extensively optimized through standardized design, consistent use of lightweight design and state-of-the-art technologies in comparison to the previous engines.
